HSL413多维力传感器
特点与用途
• High accuracy with strong ability of anti-side force
• Easy to install,IP66 protection
• Dimension is customizable
• Can be used for military grade measurement
• Mainly used in large aircraft assembly,automotive
assembly and car crash experiments,machining center
precisinon machining and medical equipment precision
testing
• 精度高,抗偏载能力强
• 容易安装,防护等级IP66
• 接受定制规格
• 可用于军工等级的测量
• 主要应用于大飞机装配,汽车装配及汽车碰撞试验,加工中心精
雕加工和医疗设备精密测试
量程
X:10/25/50kN
Y:10/25/50kN
Z:25/50/100kN(大量程可定制)
技术参数
Rated Output |
输出灵敏度 |
≈1.0mV/V |
Zero Balance |
零点输出 |
±2% F.S. |
Non-linearity |
非线性 |
0.2%F.S. |
Hysteresis |
滞后 |
0.2%F.S. |
Repeatability |
重复性 |
0.2%F.S. |
Creep after 30 minutes |
蠕变(30分钟) |
0.2%F.S. |
Temp.effect on output |
温度灵敏度漂移 |
0.1%F.S./10℃ |
Temp.effect on zero |
零点温度漂移 |
0.1%F.S./10℃ |
Input Impedance |
输入阻抗 |
700±10Ω |
Output Impedance |
输出阻抗 |
700±10Ω |
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
Recommended Excitation |
推荐激励电压 |
5~10V |
Maximum Excitation |
最大激励电压 |
15V |
Compensated Temp.Range |
温度补偿范围 |
-10℃~40℃ |
Operation Temp.Range |
工作温度范围 |
-20℃~75℃ |
Safe Overload |
安全超载 |
150%F.S. |
Ultimate overload |
极限超载 |
300%F.S. |
Cable Size |
电缆线尺寸 |
φ6×3000mm |
Protection Class |
防护等级 |
IP66 |

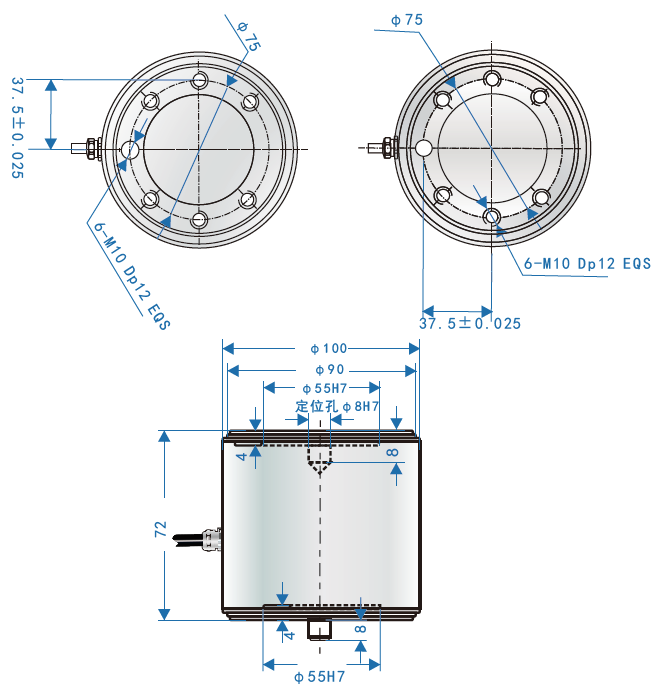

尺寸图
