HSL500特殊力传感器
特点与用途
• Miniature load cell, low profile, small deflection
• Made of stainless steel
• Tension and compression application
• Mainly used for tension and compression force testing for raw
material and other industrial testing and control system
• High dynamic response frequency
• 高度低,变形量小
• 不锈钢材料
• 拉压双向
• 主要用于材料拉伸及挤压力的测量及其他工业测试、测量及控制系统
• 动态响应频率高
量程
φ5mm-φ28mm
技术参数
Rated Output |
输出灵敏度 |
1.0mV/V |
Zero Balance |
零点输出 |
±1% F.S. |
Non-linearity |
非线性 |
0.1%F.S. |
Hysteresis |
滞后 |
0.1%F.S. |
Repeatability |
重复性 |
0.1%F.S. |
Creep after 30 minutes |
蠕变(30分钟) |
0.1%F.S. |
Temp.effect on output |
温度灵敏度漂移 |
0.05%F.S./10℃ |
Temp.effect on zero |
零点温度漂移 |
0.05%F.S./10℃ |
Input Impedance |
输入阻抗 |
350±20Ω |
Output Impedance |
输出阻抗 |
350±5Ω |
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
Recommended Excitation |
推荐激励电压 |
5~10 V |
Maximum Excitation |
最大激励电压 |
15V |
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
Operation Temp.Range |
工作温度范围 |
-30℃~85℃ |
Safe Overload |
安全超载 |
150%F.S. |
Ultimate overload |
极限超载 |
200%F.S. |
Cable Size |
电缆线尺寸 |
φ3×4000mm |
Protection Class |
防护等级 |
IP66 |

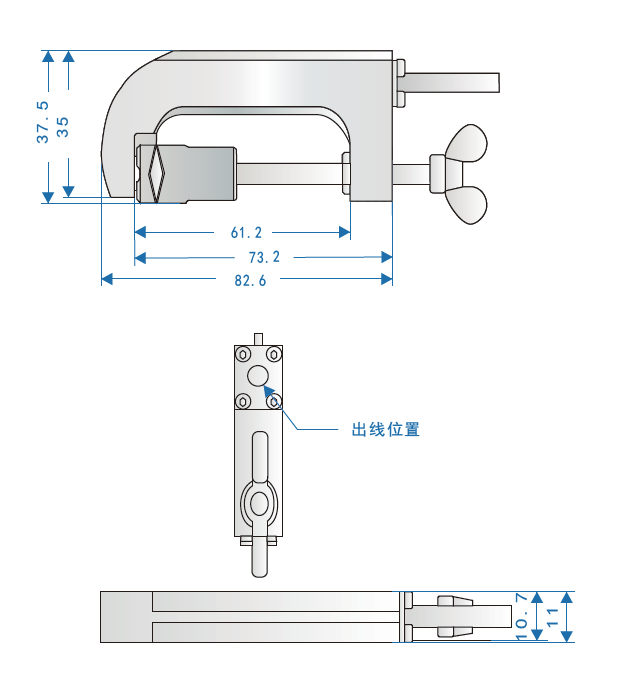

尺寸图
