HSL414特殊力传感器
特点与用途
• High accuracy with strong ability of anti-side force
• Easy to install, Ip66 protection
• Dimension could be customizable
• Automobile stall test, fluid mechanics test measurement
• Suitable for Automotive press fit, automated assembly,3c
products testing, new energy product assembly, medical
testing, robotics, mold assembly and other industrial testing
and control system
• 精度高，抗偏载能力强
• 容易安装，IP66
• 按受定制规格
• 汽车档位测试，流体力学试验测量
• 汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、
机器人领域，模具组装及其他工业测试、测量及控制系统
量程
X:100/200/500/1000
Y:100/200/500/1000
技术参数
|
Rated Output |
输出灵敏度 |
1.0~1.5mV/V |
|
Zero Balance |
零点输出 |
±2% F.S. |
|
Non-linearity |
非线性 |
0.1%F.S. |
|
Hysteresis |
滞后 |
0.1%F.S. |
|
Repeatability |
重复性 |
0.1%F.S. |
|
Interference error |
互扰误差 |
0.3%F.S. |
|
Creep after 30 minutes |
蠕变(30分钟) |
0.1%F.S. |
|
Temp.effect on output |
温度灵敏度漂移 |
0.1%F.S./10℃ |
|
Temp.effect on zero |
零点温度漂移 |
0.1%F.S./10℃ |
|
Input Impedance |
输入阻抗 |
785±20Ω |
|
Output Impedance |
输出阻抗 |
700±10Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
|
Recommended Excitation |
推荐激励电压 |
5~12V |
|
Maximum Excitation |
最大激励电压 |
15V |
|
Compensated Temp.Range |
温度补偿范围 |
-10℃~40℃ |
|
Operation Temp.Range |
工作温度范围 |
-20℃~75℃ |
|
Safe Overload |
安全超载 |
150%F.S. |
|
Ultimate overload |
极限超载 |
200%F.S. |
|
Cable Size |
电缆线尺寸 |
φ4×4000mm |
|
Protection Class |
防护等级 |
IP66 |

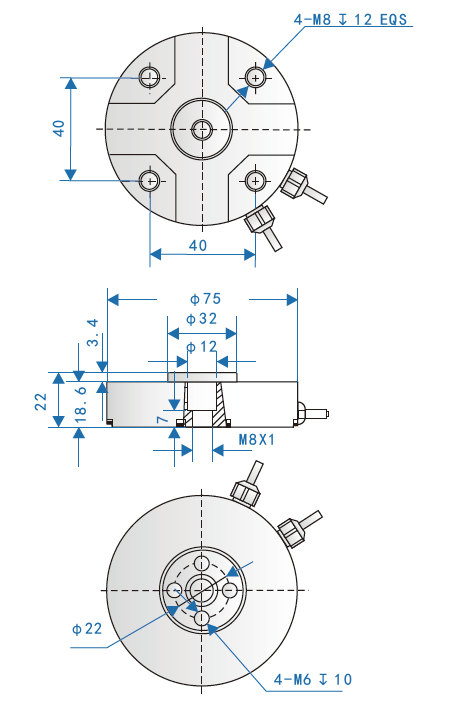

尺寸图
