HSP113单点式称重传感器
特点与用途
- Made of stainless steel,strong stability
- High accuracy with strong ability of anti-side force
- Easy to install,IP67 protection
- Mainly used for electronic scales, electronic balance, price computing scales and industrial weighing systems
- 不锈钢材质，稳定性强
- 精度高，抗偏载能力强
- 容易安装，IP67
- 适用于电子秤、计数秤、电子天平及工业秤重系统
量程
3, 6, 10,20, 50, 100, 200kg
技术参数
|
Rated Output |
输出灵敏度 |
2.0±10%mV/V |
|
Zero Balance |
零点输出 |
±2% F.S. |
|
Non-linearity |
非线性 |
0.0166%F.S. |
|
Hysteresis |
滞后 |
0.0166%F.S. |
|
Repeatability |
重复性 |
0.02%F.S. |
|
Creep after 30 minutes |
蠕变(30分钟) |
0.017%F.S. |
|
Temp.effect on output |
温度灵敏度漂移 |
0.017%F.S./10℃ |
|
Temp.effect on zero |
零点温度漂移 |
0.02%F.S./10℃ |
|
Input Impedance |
输入阻抗 |
420±20Ω |
|
Output Impedance |
输出阻抗 |
350±10Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
|
Recommended Excitation |
推荐激励电压 |
5~15V |
|
Maximum Excitation |
最大激励电压 |
20V |
|
Compensated Temp.Range |
温度补偿范围 |
-10℃~40℃ |
|
Operation Temp.Range |
工作温度范围 |
-10℃~50℃ |
|
Safe Overload |
安全超载 |
150%F.S. |
|
Ultimate overload |
极限超载 |
300%F.S. |
|
Cable Size |
电缆线尺寸 |
φ5.2×1600mm |
|
Protection Class |
防护等级 |
IP67 |

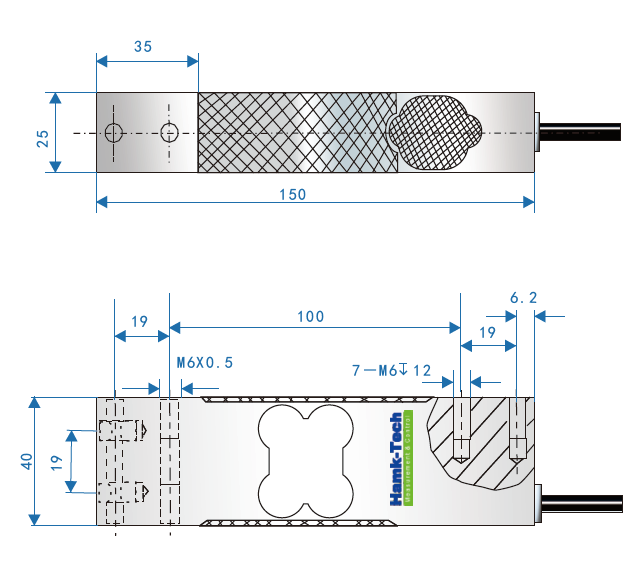

尺寸图
