HSL316扭矩测量传感器
特点与用途
• Constituted by Strain gauge sensitive components and integrated circuits;
• High precision with stable and reliable performance;
• This sensor is brush power supply, the output is OK for positive and negative torque signal;
• Both ends are keyed;
• Maximum speed of torque cannot over 4000r/min.
• 电阻应变为敏感元件和集成电路构成的一体产品;
• 精度高,性能稳定可靠;
• 电刷供电,可测量正反两方扭矩值;
• 两端均为键连接,安装使用方便;
• 最高测量转速4000转/分钟。
量程
0.1,0.2,0.3,0.5,1,2,3,5Nm
技术参数
Rated Output |
输出灵敏度 |
1.0~1.5mV/V |
Zero Balance |
零点输出 |
±1% F.S. |
Non-linearity |
非线性 |
0.2%F.S. |
Hysteresis |
滞后 |
0.2%F.S. |
Repeatability |
重复性 |
0.1%F.S. |
Creep after 30 minutes |
蠕变(30分钟) |
0.2%F.S. |
Temp.effect on output |
温度灵敏度漂移 |
0.1%F.S./10℃ |
Temp.effect on zero |
零点温度漂移 |
0.1%F.S./10℃ |
Input Impedance |
输入阻抗 |
350±10Ω |
Output Impedance |
输出阻抗 |
350±10Ω |
Insulation Resistance |
绝缘阻抗 |
≥2000 MΩ/100VDC |
Recommended Excitation |
激励电压 |
12V |
Maximum Excitation |
最大激励电压 |
20V |
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
Operation Temp.Range |
工作温度范围 |
-30℃~60℃ |
Safe Overload |
安全超载 |
120%F.S. |
Ultimate overload |
极限超载 |
150%F.S. |
Cable Size |
电缆线尺寸 |
3m |
Protection Class |
防护等级 |
IP66 |

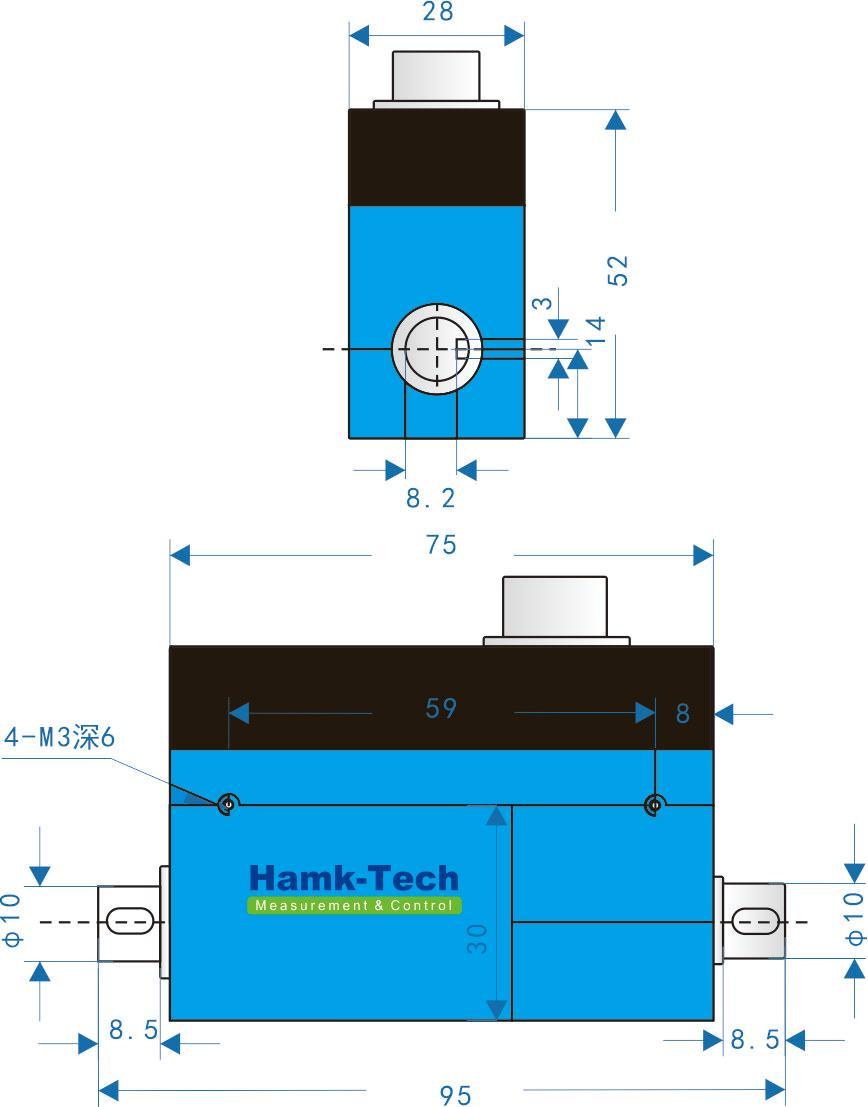

尺寸图
