HSB112悬臂梁称重传感器
特点与用途
- Single ended shear beam load cell
- Alloy steel construction
- High accuracy
- High stability
- Unique “blind”loading hole
- Easy to install
- Protected against corrosion by nickelplated treatment
- Suitable for floor scales, blending& mixing systems and batching
- 悬臂梁式
- 优质合金钢材质
- 高精度
- 高稳定性
- 独特的承载盲孔设计
- 安装简便、快速
- 表层镀镍防腐处理
- 适用于平台秤、搅拌站和配料秤等
量程
5t,10t,15t,20t
技术参数
|
Rated Output |
输出灵敏度 |
2.0±0.1%mV/V |
|
Zero Balance |
零点输出 |
≤±1% F.S. |
|
Non-linearity |
非线性 |
≤±0.03%F.S. |
|
Hysteresis |
滞后 |
≤±0.03%F.S. |
|
Repeatability |
重复性 |
≤±0.03%F.S. |
|
Creep after 30 minutes |
蠕变(30分钟) |
≤±0.03%F.S. |
|
Temp.effect on output |
温度灵敏度漂移 |
≤0.002%F.S./10℃ |
|
Temp.effect on zero |
零点温度漂移 |
≤0.002%F.S./10℃ |
|
Input Impedance |
输入阻抗 |
387±20Ω |
|
Output Impedance |
输出阻抗 |
350±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
|
Recommended Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
最大激励电压 |
15V DC/AC |
|
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
|
Operation Temp.Range |
工作温度范围 |
-20℃~80℃ |
|
Safe Overload |
安全超载 |
150%F.S. |
|
Ultimate overload |
极限超载 |
200%F.S. |
|
Cable Size |
电缆线尺寸 |
9.5m(10~15t)/13m(20t) |
|
Protection Class |
防护等级 |
IP66 |

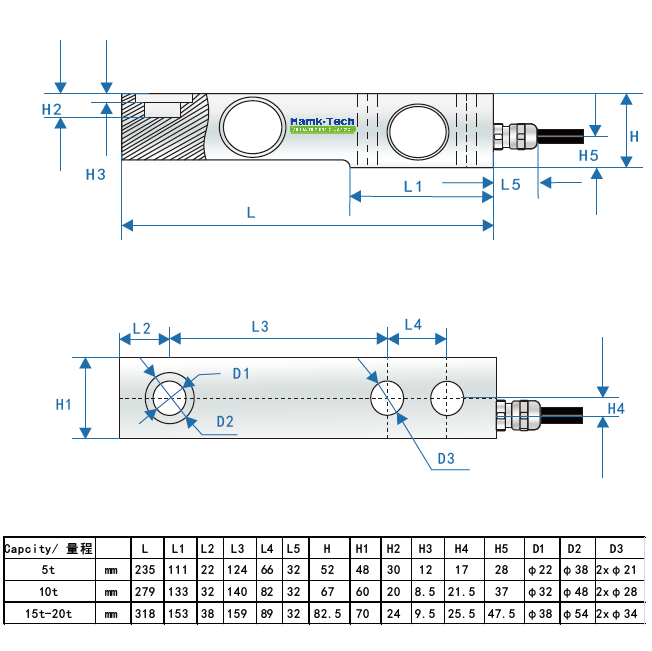

尺寸图
