S型传感器 HST215
特点与用途
- Made of stainless steel with high accuracy design
- Laser welding with IP68 protection class
- Tension and compression application
- Manly used for ftension and compression testing instruments
and automatic equipments fields,such as testing instruments,
hopper scales,lifting hook scales, tension test of steel wire rope
and other automatic instruments
- 不锈钢材料及高精度设计
- 激光焊封，IP68防护等级
- 拉压双向
- 用于试验机、料斗秤、吊钩秤、钢丝绳、张力测试等拉压力测试仪器以及各种自动化设备领域
- 动态响应频率高
量程
50kg,100kg,200kg,500kg,1000kg,2000kg,3000kg,5000kg
技术参数
|
Rated Output |
输出灵敏度 |
2.0±0.25%mV/V |
|
Zero Balance |
零点输出 |
≤±0.5% F.S. |
|
Non-linearity |
非线性 |
≤±0.018%F.S. |
|
Hysteresis |
滞后 |
≤±0.018%F.S. |
|
Repeatability |
重复性 |
≤±0.018%F.S. |
|
Creep after 30 minutes |
蠕变(30分钟) |
≤±0.024%F.S. |
|
Temp.effect on output |
温度灵敏度漂移 |
≤0.014%F.S./10℃ |
|
Temp.effect on zero |
零点温度漂移 |
≤0.017%F.S./10℃ |
|
Input Impedance |
输入阻抗 |
350±5Ω |
|
Output Impedance |
输出阻抗 |
350±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
|
Recommended Excitation |
推荐激励电压 |
5V DC/AC |
|
Maximum Excitation |
最大激励电压 |
15V DC/AC |
|
Compensated Temp.Range |
温度补偿范围 |
-10℃~40℃ |
|
Operation Temp.Range |
工作温度范围 |
-30℃~70℃ |
|
Safe Overload |
安全超载 |
150%F.S. |
|
Ultimate overload |
极限超载 |
300%F.S. |
|
Cable Size |
电缆线尺寸 |
φ5.4×3000mm |
|
Protection Class |
防护等级 |
IP68 |

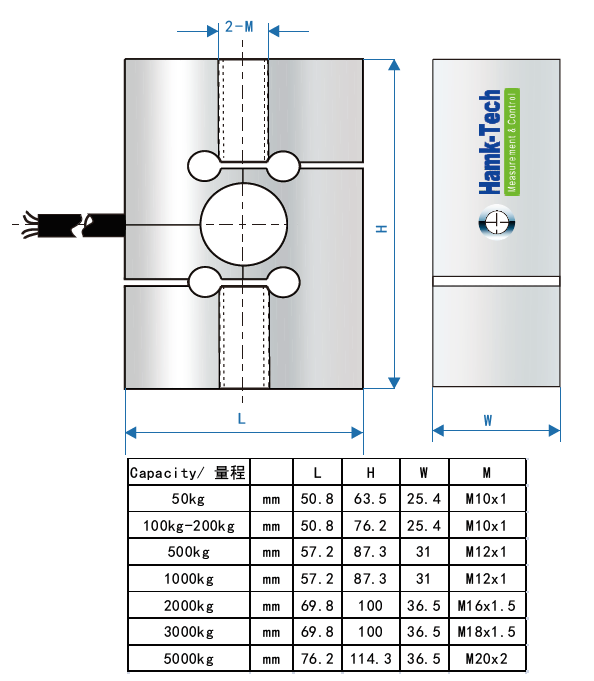

尺寸图
