HCC110压向力传感器
特点与用途
- Low profile, small deflection and mini dimension
- Made of stainless steel,High temperature could be customized
- Ip67 protection, customizable
- Suitable for Automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial testing and control system
- High dynamic response frequency
- 高度低，变形量小，外形尺寸小
- 不锈钢材料，可定制高温
- 防护等级：IP67,可定制
- 汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗 检测、机器人领域，模具组装及其他工业测试、测量及控制系统
- 动态响应频率高
量程
50N,100N,200N,500N,1000N,2000N,3000N,5000N
技术参数
| Rated Output | 输出灵敏度 |
1.5±20%mV/V |
| Zero Balance | 零点输出 |
≤±0.05%F.S. |
| Non-linearity | 非线性 |
0.5%F.S./0.2%F.S. |
| Hysteresis | 滞后 |
0.2%F.S./0.2%F.S. |
| Repeatability | 重复性 |
0.2%F.S./0.1%F.S. |
| Creep after 30 minutes | 蠕变(30分钟) |
0.2%F.S./0.1%F.S. |
| Temp.effect on output | 温度灵敏度漂移 | ≤0.05%F.S./10℃ |
| Temp.effect on zero | 零点温度漂移 |
≤0.05%F.S./10℃ |
| Input Impedance | 输入阻抗 |
700±20Ω |
| Output Impedance | 输出阻抗 |
700±10Ω |
| Insulation Resistance | 绝缘阻抗 | ≥5000MΩ/50VDC |
| Recommended Excitation | 推荐激励电压 |
5~15V DC/AC |
| Maximum Excitation | 最大激励电压 | 20V DC/AC |
| Compensated Temp.Range | 温度补偿范围 |
-10℃~60℃ |
| Operation Temp.Range | 工作温度范围 | -20℃~80℃ |
| Safe Overload | 安全超载 | 150%F.S. |
| Ultimate overload | 极限超载 |
200%F.S. |
| Cable Size | 电缆线尺寸 |
φ3×4000mm/φ4×4000mm |
| Protection Class | 防护等级 | IP66 |

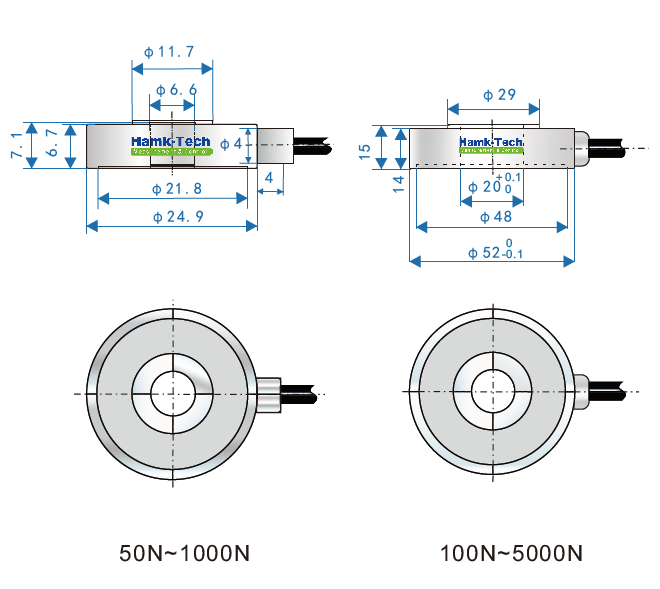

尺寸图
