HFT213拉压双向传感器 /特殊定制传感器
特点与用途
- Pancake type load cell
- Alloy steel construction
- High accuracy
- High stability
- Low profile
- Easy to install
- Tension and compression application
- Suitable for testing machine,truck scales and big bin & hopper scales,etc.
- 轮辐式传感器
- 优质合金钢材质
- 高精度
- 高稳定性
- 低外形
- 安装简便、快速
- 拉压双向
- 适用于试验机、汽车衡和大型料斗秤等
量程
1t,2t,3t,5t,10t,15t,20t,25t,30t
Larger capacities are also provided(可定制更大量程)
技术参数
Rated Output |
输出灵敏度 |
3.0±0.25%mV/V |
Zero Balance |
零点输出 |
≤±1% F.S. |
Non-linearity |
非线性 |
≤±0.01%F.S. |
Hysteresis |
滞后 |
≤±0.01%F.S. |
Repeatability |
重复性 |
≤±0.01%F.S. |
Creep after 30 minutes |
蠕变(30分钟) |
≤±0.01%F.S. |
Temp.effect on output |
温度灵敏度漂移 |
≤0.002%F.S./10℃ |
Temp.effect on zero |
零点温度漂移 |
≤0.002%F.S./10℃ |
Input Impedance |
输入阻抗 |
387±20Ω |
Output Impedance |
输出阻抗 |
350±5Ω |
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/50VDC |
Recommended Excitation |
推荐激励电压 |
10V DC/AC |
Maximum Excitation |
最大激励电压 |
15V DC/AC |
Compensated Temp.Range |
温度补偿范围 |
-10℃~40℃ |
Operation Temp.Range |
工作温度范围 |
-10℃~70℃ |
Safe Overload |
安全超载 |
150%F.S. |
Ultimate overload |
极限超载 |
200%F.S. |
Cable Size |
电缆线尺寸 |
6m/10m |
Protection Class |
防护等级 |
IP65/IP67(Option) |

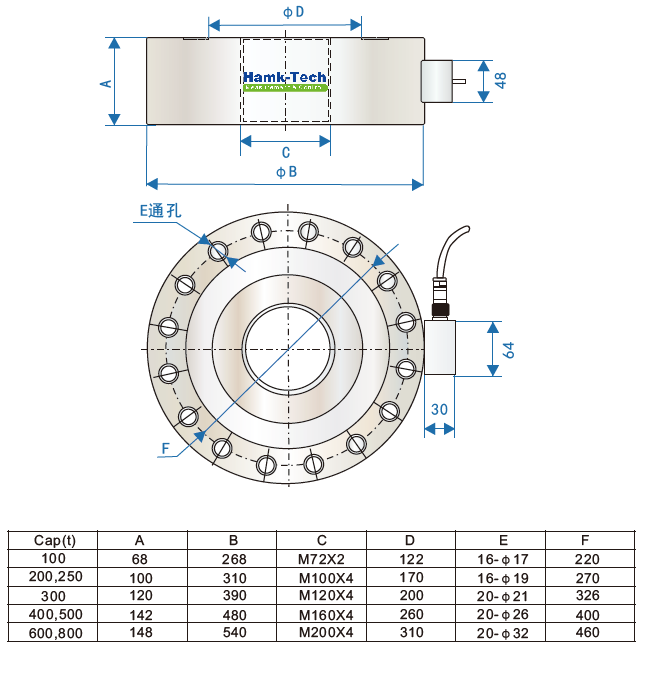

尺寸图
