HSL111特殊定制传感器
特点与用途
- Alloy steel construction
- 2 Bolt holes
- Ip66 Hermetically sealed protection
- Suitable for Tank weighing or level systems, agricultural equipment ,rolling mill sensing,moment sensing, structural loading measurements,brridge structures
- 合金钢结构
- 2个螺栓孔
- Ip66密封保护适
- 用于罐式称重或液位系统、农业设备,轧机感应、力矩感应结构载荷测量,桥梁结构
技术参数
Rated Output |
输出灵敏度 |
1.7mV/V at500με |
Temp.effect on zero |
零点温度漂移 |
≤0.025%±%of FSO/℃ |
Input Impedance |
输入阻抗 |
350±10Ω |
Output Impedance |
输出阻抗 |
350±10Ω |
Insulation Resistance |
绝缘阻抗 |
≥2000 MΩ/50VDC |
Recommended Excitation |
推荐激励电压 |
10V DC/AC |
Maximum Excitation |
最大激励电压 |
5~20V DC/AC |
Operation Temp.Range |
工作温度范围 |
-10℃~70℃ |
Safe Overload |
安全超载 |
300%F.S. |
Ultimate overload |
极限超载 |
500%F.S. |
Construction |
材质 |
Alloy steel |
Protection Class |
防护等级 |
IP66 |

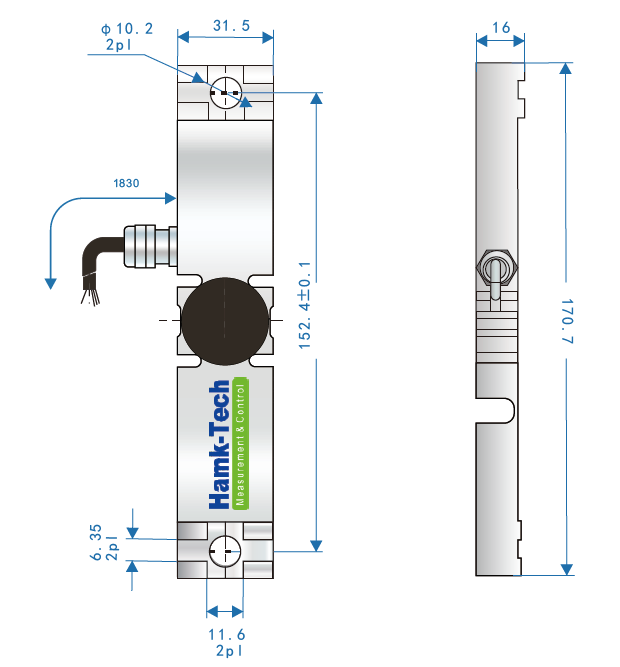

尺寸图
