HPT114压向力传感器
特点与用途
- Low profile,small deformation and mini dimension
- Made of stainless steel
- IP66 protection customizable
- High temperature could be customizable for injection molding, extrusion and other manufacturing process.
- Suitable for Automotive press fit, automated assembly,3C products testing,new energy product assembly, medical testing,robotics, mold assembly and other industrial testing and control system
- High dynamic response frequency
- 高度低，变形量小，外形尺寸小
- 不锈钢材料
- 防护等级：IP66、可定制
- 可定制高温性能，用于注塑、挤压等制造工艺
- 汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域，模具组装及其他工业测试、测量及控制系统
- 动态响应频率高
量程
20,50,100,200,300,500,1000N
技术参数
|
Rated Output |
输出灵敏度 |
1.0±20%mV/V |
|
Zero Balance |
零点输出 |
±0.05% mV/V |
|
Non-linearity |
非线性 |
0.5%F.S. |
|
Hysteresis |
滞后 |
0.5%F.S. |
|
Repeatability |
重复性 |
0.5%F.S. |
|
Creep after 30 minutes |
蠕变(30分钟) |
0.2%F.S. |
|
Temp.effect on output |
温度灵敏度漂移 |
0.05%F.S./10℃ |
|
Temp.effect on zero |
零点温度漂移 |
0.05%F.S./10℃ |
|
Input Impedance |
输入阻抗 |
600~800Ω |
|
Output Impedance |
输出阻抗 |
600~800Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
|
Recommended Excitation |
推荐激励电压 |
5~12V |
|
Maximum Excitation |
最大激励电压 |
15V |
|
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
|
Operation Temp.Range |
工作温度范围 |
-20℃~80℃ |
|
Safe Overload |
安全超载 |
150%F.S. |
|
Ultimate overload |
极限超载 |
300%F.S. |
|
Cable Size |
电缆线尺寸 |
φ2×4000mm |
|
Protection Class |
防护等级 |
IP66 |

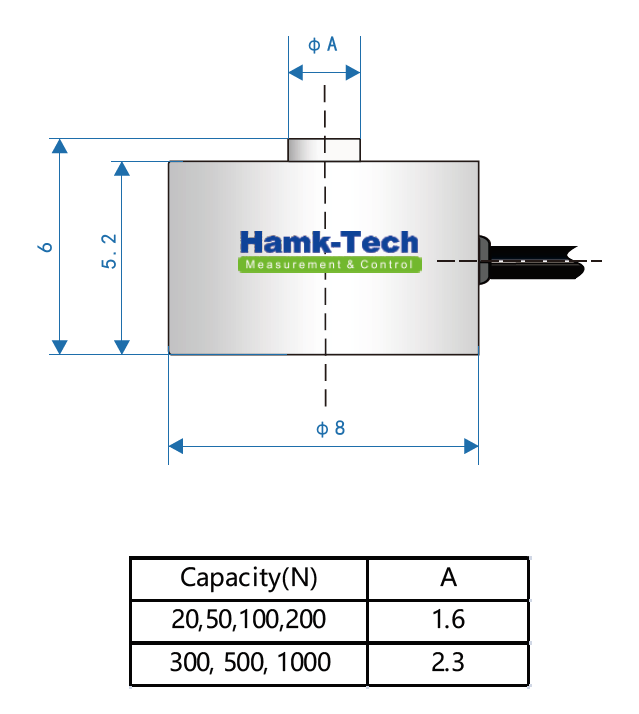

尺寸图
