HPT117压向力传感器
特点与用途
- Low profile,small deformation and mini dimension
- Made of Stainless steel,High temperature could be customized
- IP67 protection customizable
- Suitable for Automotive press fit, automated assembly,3C products testing,new energy product assembly, medical testing,robotics, mold assembly and other industrial testing and control system
- High dynamic response frequency
- 高度低,变形量小,外形尺寸小
- 不锈钢材料,可定制高温
- 防护等级:IP67、可定制
- 汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域,模具组装及其他工业测试、测量及控制系统
- 动态响应频率高
量程
1,2,5,10,20,30,50,100kN
技术参数
Rated Output |
输出灵敏度 |
1.5±10%mV/V |
Zero Balance |
零点输出 |
±0.03% mV/V |
Non-linearity |
非线性 |
0.2%F.S. |
Hysteresis |
滞后 |
0.1%F.S. |
Repeatability |
重复性 |
0.1%F.S. |
Creep after 30 minutes |
蠕变(30分钟) |
0.05%F.S. |
Temp.effect on output |
温度灵敏度漂移 |
0.05%F.S./10℃ |
Temp.effect on zero |
零点温度漂移 |
0.05%F.S./10℃ |
Input Impedance |
输入阻抗 |
780±20Ω |
Output Impedance |
输出阻抗 |
700±10Ω |
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
Recommended Excitation |
推荐激励电压 |
5~15V |
Maximum Excitation |
最大激励电压 |
20V |
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
Operation Temp.Range |
工作温度范围 |
-20℃~80℃ |
Safe Overload |
安全超载 |
150%F.S. |
Ultimate overload |
极限超载 |
200%F.S. |
Cable Size |
电缆线尺寸 |
φ4×4000mm |
Protection Class |
防护等级 |
IP67(可定制IP68) |

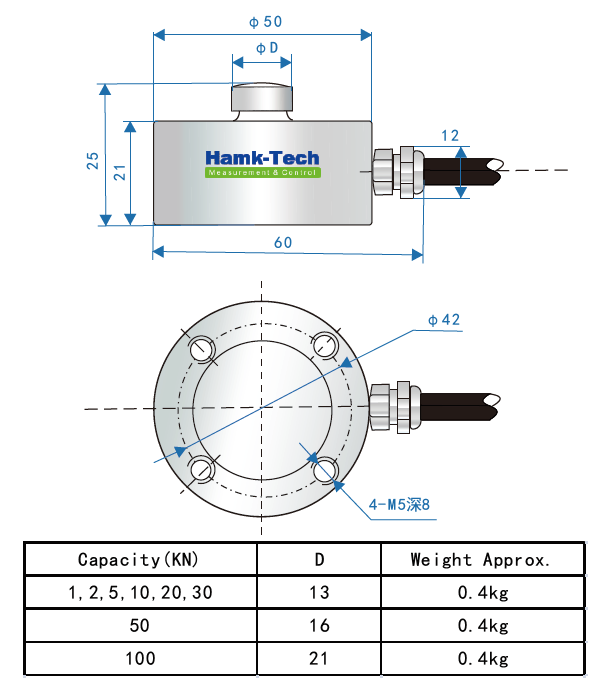

尺寸图
