HCT215 拉压双向传感器
特点与用途
• Miniature load cell, low profile, small deflection
• Made of stainless steel
• Tension and compression application
• Mainly used for automotive press fit, automated assembly ,
3C products testing, new energy product assembly, medical
testing, robotics, mold assembly and other industrial
testing and control system
• High dynamic response frequency
• 微型传感器,高度低,变形量小
• 不锈钢材料
• 拉压双向
• 主要用于汽车压装、自动化组装、3C产品测试、新能源产品组装、
医疗检测、机器人领域,模具组装及其他工业测试、测量及控制
系统
• 动态响应频率高
量程
50,100,200,500,1000N
技术参数
Rated Output |
输出灵敏度 |
1.0±20%mV/V |
Zero Balance |
零点输出 |
±0.05% mV/V |
Non-linearity |
非线性 |
0.5%F.S. |
Hysteresis |
滞后 |
0.5%F.S. |
Repeatability |
重复性 |
0.5%F.S. |
Creep after 30 minutes |
蠕变(30分钟) |
0.2%F.S. |
Temp.effect on output |
温度灵敏度漂移 |
0.2%F.S./10℃ |
Temp.effect on zero |
零点温度漂移 |
0.2%F.S./10℃ |
Input Impedance |
输入阻抗 |
800~1100Ω |
Output Impedance |
输出阻抗 |
800~1100Ω |
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
Recommended Excitation |
推荐激励电压 |
5~12V |
Maximum Excitation |
最大激励电压 |
15V |
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
Operation Temp.Range |
工作温度范围 |
-20℃~80℃ |
Safe Overload |
安全超载 |
150%F.S. |
Ultimate overload |
极限超载 |
200%F.S. |
Cable Size |
电缆线尺寸 |
φ2×4000mm |
Protection Class |
防护等级 |
IP67 |

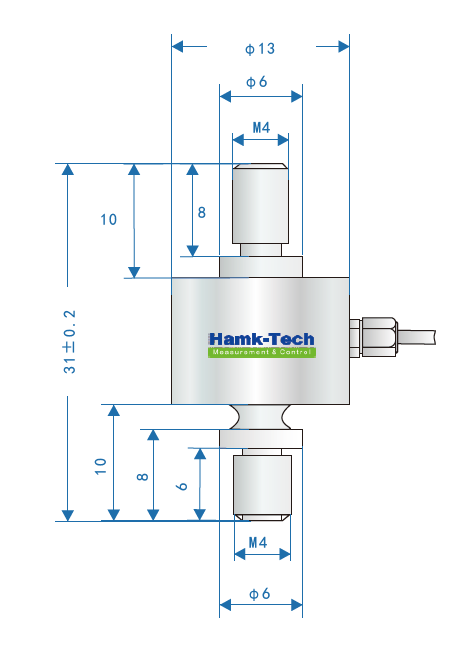

尺寸图
