HCC201拉压双向传感器
特点与用途
• Pancake type load cell
• Alloy steel/stainless steel
• Tension and compression application,capacity is able to be customized
• Mainly used for automotive press fit, automated
assembly,3C products testing,new energy product assembly, medical testing,robotics, mold assembly and other industrial testing and control system;this also is applicable to testing machine,truck scale,hopper scale,a variety of industrial weighing systems
• High dynamic response frequency
• 法兰式传感器
• 合金钢/不锈钢材料
• 拉压双向，量程可定制
• 主要用于汽车压装、自动化组装、3C产品测试、新能源产品组装、医疗检测、机器人领域，模具组装及其化工业测试、测量及控制系统；也适用于试验机，汽车衡，料斗秤，各种工业称重系统等
• 动态响应频率高
量程
0.1,0.2,0.5,1,2,3,5,10t
技术参数
|
Rated Output |
输出灵敏度 |
2.0±10%mV/V |
|
Zero Balance |
零点输出 |
±3%mv/v |
|
Non-linearity |
非线性 |
0.3 %F.S. |
|
Hysteresis |
滞后 |
0.3%F.S. |
|
Repeatability |
重复性 |
0.3%F.S. |
|
Creep after 30 minutes |
蠕变(30分钟) |
0.3%F.S. |
|
Temp.effect on output |
温度灵敏度漂移 |
0.05%F.S./10℃ |
|
Temp.effect on zero |
零点温度漂移 |
0.05%F.S./10℃ |
|
Input Impedance |
输入阻抗 |
780±20Ω |
|
Output Impedance |
输出阻抗 |
700±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000 MΩ/100VDC |
|
Recommended Excitation |
推荐激励电压 |
5~12V |
|
Maximum Excitation |
最大激励电压 |
15V |
|
Compensated Temp.Range |
温度补偿范围 |
-10℃~60℃ |
|
Operation Temp.Range |
工作温度范围 |
-20℃~80℃ |
|
Safe Overload |
安全超载 |
150%F.S. |
|
Ultimate overload |
极限超载 |
200%F.S. |
|
Cable Size |
电缆线尺寸 |
φ5×4000mm |
|
Protection Class |
防护等级 |
IP66 |

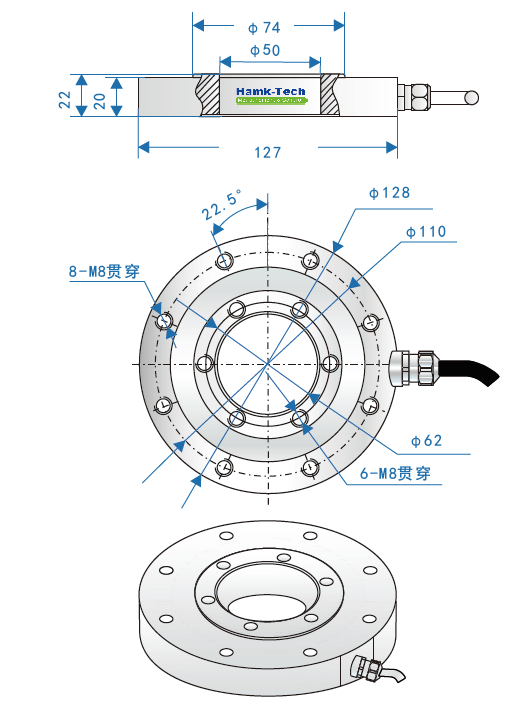

尺寸图
